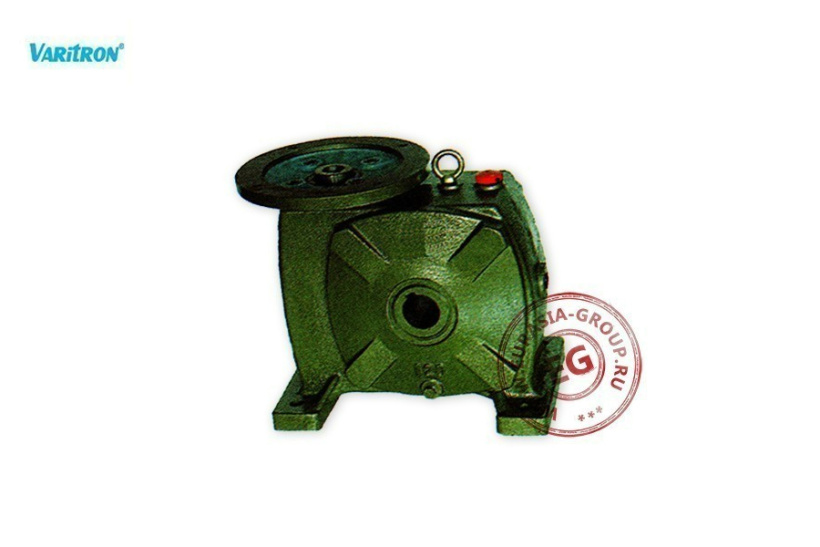

Одноступенчатый червячный редуктор TOW
| Модель | H | LL | CC | BB | B | Крепление | Входной вал | Выходное отверстие | Вес (кг) | |||||||||||
| F1 | F2 | E | M | N | G | Z | HS | U | d | TxVxHK | W | Y | S | |||||||
| TOW60 | 170 | 90 | 60 | 56 | 112 | 67 | 98 | 105 | 130 | 207 | 21 | 11 | 40 | 15 | 17 | 5x5x35 | 7 | 28.3 | 25 | 11 |
| TOW70 | 235 | 95 | 70 | 65 | 130 | 75 | 115 | 120 | 150 | 230 | 20 | 15 | 40 | 18 | 20 | 5x5x35 | 8 | 33.3 | 30 | 14 |
| TOW80 | 266 | 105 | 80 | 70 | 140 | 90 | 125 | 125 | 160 | 264 | 20 | 15 | 50 | 22 | 25 | 7x7x45 | 10 | 38.3 | 35 | 20 |
| TOWIOO | 325 | 135 | 100 | 90 | 180 | 100 | 150 | 155 | 195 | 310 | 25 | 15 | 50 | 25 | 28 | 7x7x45 | 10 | 43.3 | 40 | 42 |
| TOW120 | 391 | 160 | 120 | 100 | 200 | 120 | 180 | 180 | 230 | 360 | 28 | 18 | 65 | 30 | 33 | 7x7x60 | 12 | 48.3 | 45 | 58 |
| TOW135 | 428 | 170 | 135 | 110 | 220 | 130 | 200 | 200 | 250 | 390 | 30 | 18 | 75 | 35 | 38 | 10x8x70 | 15 | 59.3 | 55 | 78 |
