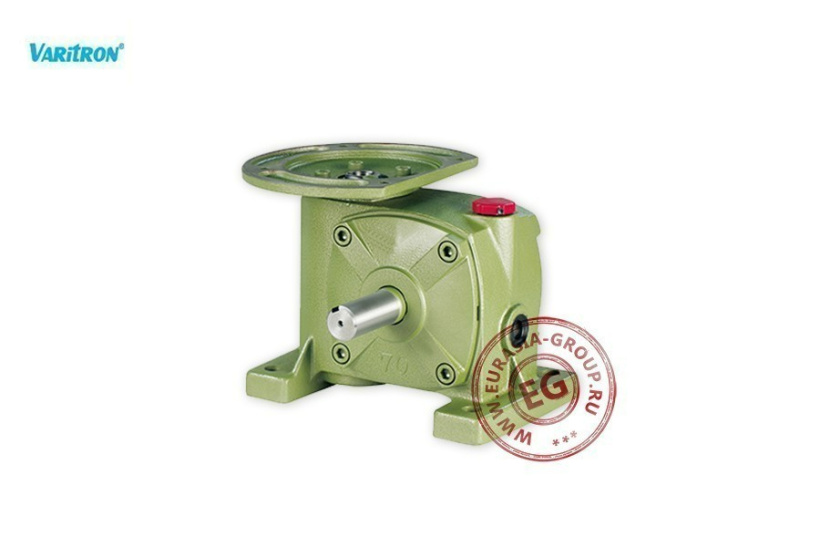

Одноступенчатый червячный редуктор TMW
| Модель | H | LL | СС | B | BB | Фланец двигателя | Крепление | Входной вал | Выходной вал | Вес (кг) | ||||||||||||||
| P | Q | R | K | F1 | F2 | E | M | N | G | Z | V | T | U | LS | S | D | WxYxLK | |||||||
| TMW50 | 163 | 76 | 50 | 178 | 98 | 130 | 110 | 160 | M8 | 53 | 77 | 100 | 125 | 161 | 15 | 11 | 12.7 | 4 | 11 | 40 | 17 | 19 | 5x5x35 | 8 |
| TMW60 | 176 | 90 | 60 | 190 | 110 | 130 | 110 | 160 | M8 | 67 | 98 | 105 | 130 | 205 | 20 | 11 | 12.7 16.3 | 4 5 | 11 14 | 50 | 22 | 25 | 7x7x45 | 12 |
| TMW70 | 199 | 95 | 70 | 210 230 | 130 | 130 165 | 110 130 | 160 200 | M8 M10 | 75 | 115 | 120 | 150 | 230 | 20 | 15 | 16.3 21.8 | 5 6 | 14 19 | 60 | 28 | 31 | 7x7x55 | 15 |
| TMW80 | 225 | 105 | 80 | 240 | 140 | 165 | 130 | 200 | M10 | 90 | 125 | 125 | 160 | 264 | 20 | 15 | 21.8 27.3 | 6 8 | 19 24 | 65 | 32 | 35 | 10x8x60 | 22 |
| TMW100 | 280 | 135 | 100 | 270 295 | 170 | 165 215 | 130 180 | 200 250 | M10 M12 | 100 | 150 | 155 | 195 | 310 | 25 | 15 | 27.3 31.3 | 8 8 | 24 28 | 75 | 38 | 41 | 10x8x70 | 42 |
| TMW120 | 326 | 160 | 120 | 315 | 190 | 215 | 180 | 250 | M12 | 120 | 180 | 180 | 230 | 360 | 28 | 18 | 31.3 | 8 | 28 | 85 | 45 | 48 | 12x8x80 | 60 |
| TMW135 | 354 | 170 | 135 | 339 364 | 214 | 215 765 | 180 730 | 250 300 | M12 | 130 | 200 | 200 | 250 | 390 | 30 | 18 | 31.3 41.3 | 8 10 | 28 38 | 95 | 55 | 59 | 15x10x90 | 81 |
